HdrOzone
Hydronium & Ozone & Hydrogen Peroxide & Gas Plasma Sterilization Device

Comparison Table of Ethylene Oxide, Hydrogen Peroxide, and HdrOzone Sterilization Systems

The table compares sterilizers in terms of different parameters and features. Although each of the sterilization methods has its established characteristics, there are variables that should be considered from the end-user perspective.

The ranking shows that the most suitable sterilizer is the HdrOzone Sterilization Device with 16/18 points. Second, with 8/18 in terms of Cost and Capacity, is the Hydrogen Peroxide Gas Plasma Sterilizer. Third, with limited advantages and high risks, is the Ethylene Oxide Gas Sterilizer with 7/18.

Advantages of the HdrOzone^® Sterilization Technique in Sterilization

• The use of heavy molecules instead of hydroxyls alone in the new HdrOzone technology and technique.
• H₂O₂ + O₃ and gaseous hydronium (H₃O) are used instead of condensed H₂O₂.
• Comprehensive sterilization safety.
• High biofilm efficacy.
• Short sterilization cycle time.
• Fast sterilization process under full load capacity.
• Sterilization of all types of materials under full load.
• Mixed-load capability.
• There is no need to separate materials or sterilize them individually when loading long lumens, short lumens, loads, and other materials into the sterilization chamber!
• There is no length limit for lumened materials!
• Damp, non-wet materials can be sterilized. No product drying operation is required as with other hydrogen peroxide devices.
• Completes the sterilization process at low temperature and humidity.
• For sterilization of long and thin (1 mm * 100 cm) lumened devices, it sterilizes multiple items up to 15 meters (2 mm diameter) at full load without requiring a manufacturer declaration.
• Suitable for temperature- and moisture-sensitive materials.
• Since the final products are H₂O and O₂, there is no harm to the environment. It is a safe method for the environment and human health.
• Suitable for sterilizing very long and thin-lumened flexible surgical instruments at full load.
• A sterilization method that leaves no toxic residue.
• Easy, convenient, and safe to use.
• No auxiliary accessories such as boosters are required.
• No aeration time is required.
• Reduces material-selection errors to zero. Reduces the need for qualified personnel.
• The unit sterilization cost per material and labor costs are low.
• The HdrOzone device uses a standard H₂O₂ device cartridge.
• Because sterilization in HdrOzone is performed at FULL load, cartridge consumption is one-third compared to standard H₂O₂ devices.

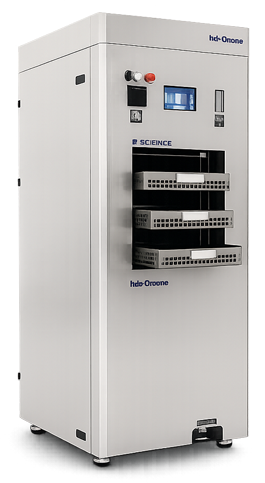

HdrOzone^® Sterilization Device INSTALLATION REQUIREMENTS

Always transport the device using a pallet truck. From the unloading location to the installation location, move it using the device's wheels. Have the device installed by our Technical Service. After installation, the personnel who will operate the device are trained and instructed on its operation.

For Installation;

• A grounded 220 V AC outlet is required.
• The installation area must be ventilated. The ambient temperature must be maintained between +15 °C and +35 °C.
• There must be at least 60 cm of clearance on the rear and sides of the device.
• A medical oxygen (O₂) source of at least 2 bar is required. An oxygen cylinder or hospital oxygen supply can be used. The medical oxygen concentration must be greater than 90%.
• An exhaust connection must be available in the wall for the HdrOzone device.
• The H₂O₂ solutions to be used must be stored in a cool place.
