Ozone & Hydrogen Peroxide & Hydronium Plasma Sterilizer
Hydronium, Ozone, Hydrogen Peroxide Sterilization and Plasma Effect met in one device.
BSCIENCE® hdrOzone sterilization device is used safely to sterilize all kinds of heat and moisture sensitive medical instruments, plastic, lumen materials, electromechanical instruments, surgical instruments, complex and long lumen materials such as single and multi-channel flexible endoscopes.
Used safely for the sterilization of long & complex endoscopes and also multi-channel flexible lumen endoscopes with 4 channels and 4.5 m length. Has a sterilization effect up to diameter Ø 2 mm and length 15 meters.
BSCIENCE® hdrOzone sterilization device is a cold plasma sterilization system with double sterilants [Hydrogen Peroxide (H2O2) and Ozone (O3)] operating at low temperature (37 – 45 °C), using heavy molecules and hydronium.
BScience HDROZONE: Safe Sterilization Process Video
Used under vacuum gas sterilization technical feature in hdrOzone sterilization. No lumen, diameter, size disadvantages, and limitations which are seen in the Hydrogen Peroxide sterilization device. It is much more effective than H2O2 plasma sterilization in the sterilization of complex lumen materials. In addition to the chemical reaction sterilization process in the device, the formation of hydroxyl radicals and plasma efficiency is very high. Not cause corrosion or residue on sterilized products.
The device uses 60% Hydrogen Peroxide (H2O2) solution and Medical Oxygen for safe and no-limit sterilization. In this way, thanks to the intelligent program design, Ozone and Hydrogen Peroxide are used together for the most effective sterilization at the lowest dose.
Sterilization technique: With the application of H2O2 and O3 it is a sterilization effect of HYDRONIUM (HO3, HO4, H2O3, H2O4, HO5, OOH, H3O etc) heavy molecules, radicals, hydroxyls and ions.
The materials coming out of the hdrOzone plasma sterilization device are presented as ready-to-use without the need for extra ventilation with technological design and applications of the device. No harmful waste, the end products formed consist of water vapor and oxygen. Therefore, it offers safe sterilization as well as safe use for personnel and the environment.
BSCIENCE hdrOzone sterilization device uses a fixed-programmed sterilization cycle, which eliminates user error in sterilization safety. No need to classify the materials to be sterilized and to choose the appropriate cycle and program as in old technology devices. Mixed loading can be done. The ability of the device to operate mixed loads maximizes device efficiency, safe sterilization returns, while minimizing the amount of material classification to be sterilized, reducing labor cost.

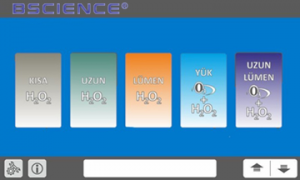

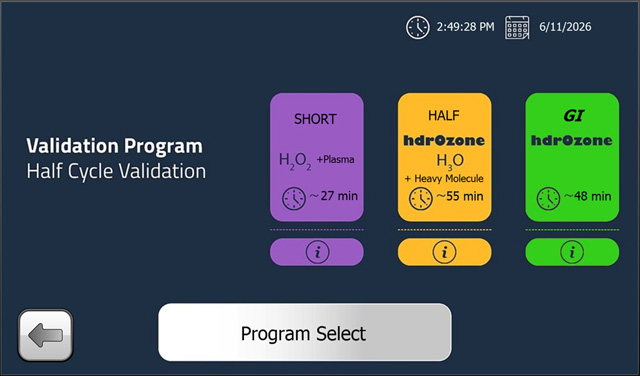

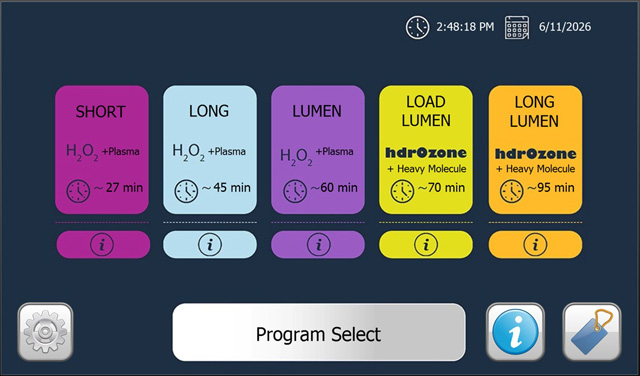

Offers simple and fast use with pre-determined program options for language selection and sterilization on the large touch screen.

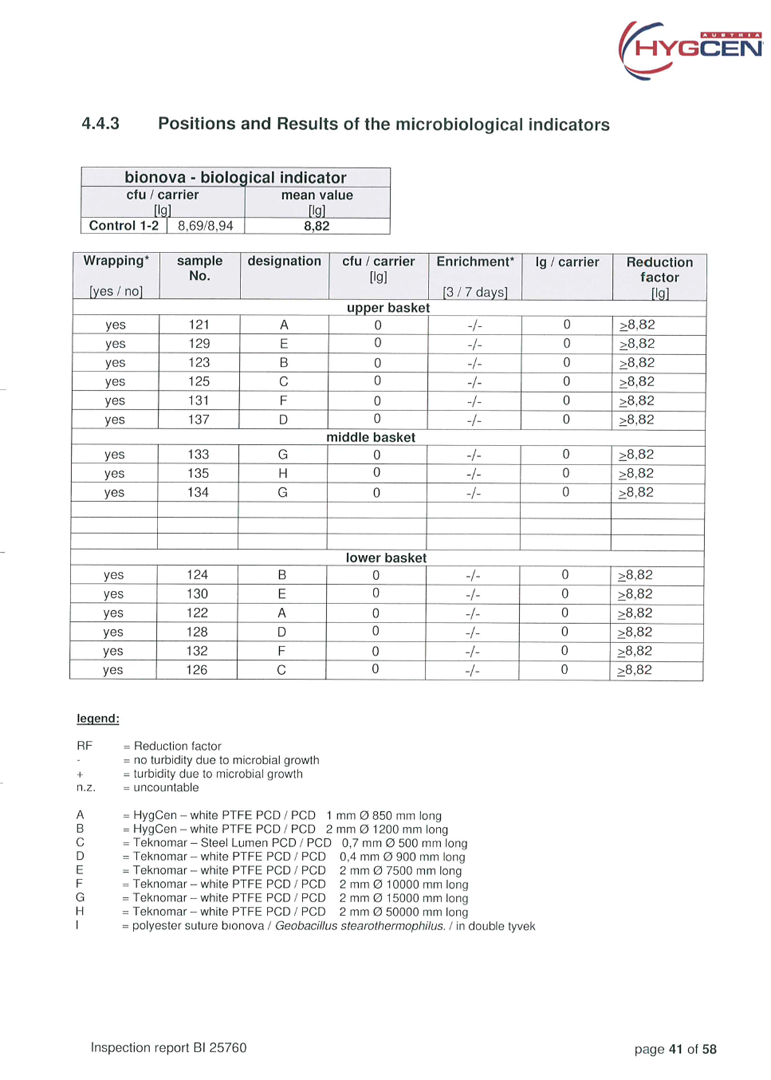

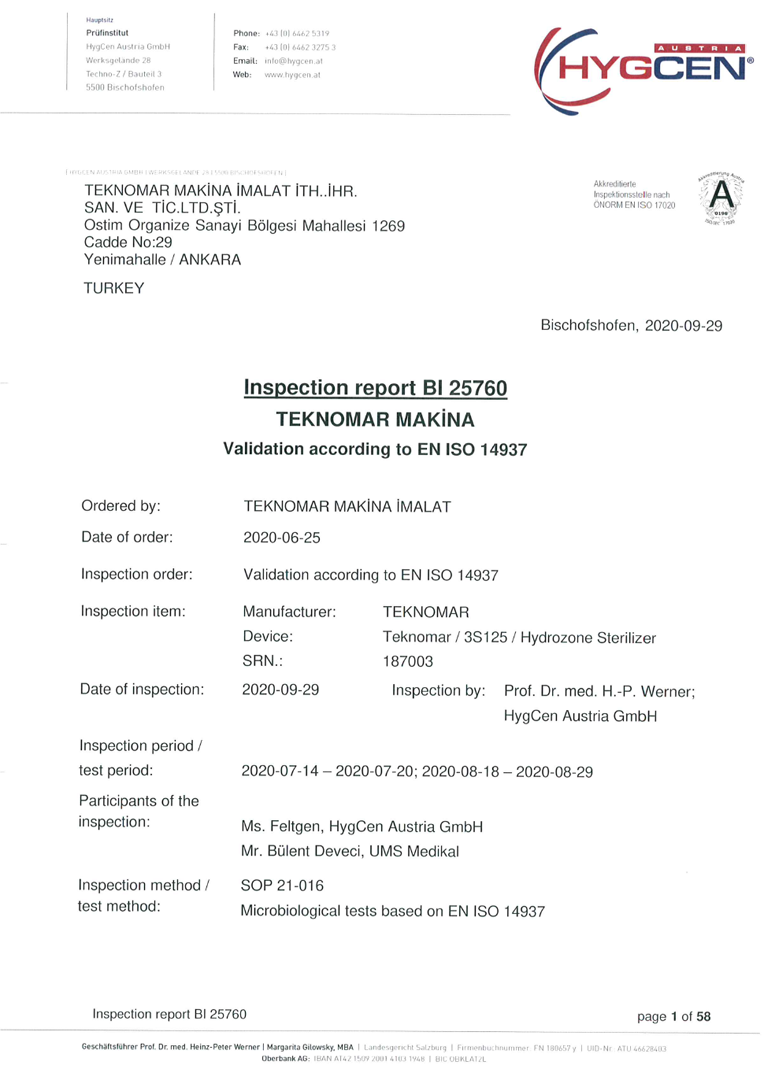

The device is in compliance with ISO 14937.
Packing Specifications: cellulose-free, synthetic materials such as polypropylene or Tyvek; Sterilization of fabric, cellulose and liquid is not suitable for this sterilization method.
BSCIENCE hdrOzone heavy molecule sterilization device operates with both H2O2 and hydronium technique. The device can also operate as a stand-alone hydrogen peroxide sterilization device.

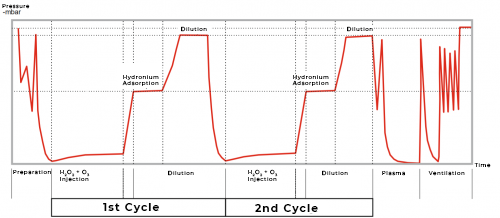

Sterilization process takes place in 8 successive stages.
After the boiler temperature reaches the selected value:
Hydrogen Peroxide H2O2 + O3 Ozone + Hydronium Plasma Sterilization Device performs sterilization of medical products and other materials with similar properties, except for conventional type disposable materials. No apparatus is needed for the sterilization of complex lumen materials.
| Endoscopes | |
|---|---|
| Rigid Endoscopes | Flexible Endoscopes |
| Arthroscope Laparoscopes Laryngoscope Resectoscope Trocar Cannula Trocar Case etc.. |
Bronchoscope Hysteroscope Choledoscope Ureteroscope Cystoscope etc.. |
| Device & Tool | |
| Defibrillator Pedals Doppler Implants Electrocautery Products Endoscopic Products Head Pressure Transducer Cables Kri-Probes Esophagus Dilators etc. |
Surgical Power Equipment Drilling & Cutting Tools Fiber Accessories Fiber Optic Cables Laser Hand Products Ophthalmic Lenses Radiation Therapy Instruments Ultrasound Probes Video Camera and Connection Apparatus etc.. |
| Model | B3S125 |
|---|---|
| TYPE | BSCIENCE® hdrOzone |
| SCREEN | Touch Screen 7″ |
| EXTERIOR DIMENSIONS (W-D-H) (mm) | 730 x 955 x 1980 |
| INTERIOR DIMENSIONS (W-D-H) (mm) | 440 x 500 x 700 |
| CHAMBER VOLUME (Lt) | 154 |
| CHAMBER EFFECTIVE VOLUME (Lt) | 134 |
| CARTRIDGE H2O2 SOLUTION AMOUNT | 150 cc |
| MAXIMUM POWER (Watt) | 3200 W |
| WORKING VOLTAGE | 220 /230 VAC, 50/60 Hz |
| EXTERIOR CHASSIS MATERIALS | STAINLESS STEEL 304 |
| CHAMBER MATERIAL | STAINLESS STEEL 316 |
| KILOGRAM | 430 |
| External Oxygen Connection | Hospital Type Medical Oxygen ≤ 90% |
| H2O2Concentration | Min %45 H2O2 Concentration and above Concentration sterilization efficiency |
| H2O2 Cartridge Feature | 45% – … – 60% H2O2 / 100 cc – 150 cc / Safety vent |
| Cartridge Cycle Quantity | 5 cycles, 7 cycles, 10 cycles, 15 cycle cartridge/cassette types are available |
| Cartridge Shelf Life | 6/12 months from the production date at a temperature of 15-25 ˚C. |
| Waste H2O2 Drainage Feature | Yes (1 Lt disposable) |
| Compatible Packaging Materials | Tyvek® Sterilization Roller, Wrap Papers, Various Surgical Container Systems |
| Unsuitable Materials | Textile, Cellulose, Liquids, Natural Rubber etc. |
| Indicators | Chemical and Biological Indicators |
| Vacuum Pump and Maintenance Periods | 6 Months (300 cycles) and 1 year (600 cycles) vacuum pump oil change is also performed with the device maintenance. |
| Other Technical Specifications | The device is a mobile block type and has easy transportation and installation feature with 4 wheels, 2 of which are locked under the cabin. Needs an external power outlet. No need additional waste disposal system. |
| STERILIZATION Method | Ethylene Oxide | Hydrogen Peroxide | Hydrogen Peroxide & Ozone |
|---|---|---|---|
| BSCIENCE® | EO - C2H4O | H2O2 | H2O2 & O3 &Hydronium |
| Efficiency | Effective | Limited Efficacy | High Efficacy on Lumen Products |
| Cycle Time | ~ 4-12 hrs | ~ 70 minutes | ~ 95 minutes (Load) |
| Cost of Cycle | ~ 12,00* € | ~9,00* € | ~ 10,00* € |
| Cartridge Storage | Challenging | Appropriate | Appropriate |
| Danger Level | High | Eco- Friendly | Ecologic |
| Preparation for Sterilization | Medium | Long | Short |
| Capacity | High Capacity | Limited Capacity | High Capacity |
| Material Compatibility | Mixed Material | Various Programs for Different Products | Mixed Material |
| Pollutant | Risky | Ecologic | Ecologic |
| External Connection | Needed | No Needed | Needed |
| Working Temperature | 37-55 ℃ | 37-55 ℃ | 37-45 ℃ |
| Sterility Assurance Level (SAL) | 10-6 | 10-6 | 10-6 |
| Maintenance | Expensive | Reasonable | Reasonable |
| Installation | Challenging | Easy | Easy |
| Working Principle | Only ETO | Only H2O2 Gas Vapor or with Plasma | 1- H2O2 2- H2O2 & O3 3- Hydronium |
| Diameter and Length | Limitless | 1 mm Ø - 850 mm / 2mm Ø 1200 mm | Ø 0,1 mm - 50 cm Ø 2 mm inner diameter min. 4,5 - 15 meter length |
| Residue on Product | Risky | No residue on product | No residue on instruments and long lumen products |
| Cost of Device (Highest) | |||
| Overall Score | 7/18 | 8/18 | 16/18 |
The chart is showing the comparison of sterilizers in terms of different parameters and properties. Although sterilization is certain in each of the methods, there are variables to consider for the end users' perspective.
The ranking shows that the most suitable sterilizer is Low-Temperature Hydrogen Peroxide (H2O2) & Ozone Gas Plasma (O3) Sterilizer with 16/18 points. The second one is Hydrogen Peroxide Gas Plasma Sterilizer in terms of Cost and Capability-with 8/18. The third is Ethylene Oxide Gas Sterilizer with limited advantages and high considerable risk – 7/18.
Carry the device with the help of a pallet truck. With the help of the wheels of the device, take it from the downloaded place to the place where it will be installed. Have the device installed by our Technical Service. After the installation, the personnel who will use the device are trained and the device is explained.
For Installation;
* For the hdrOzone device, there must be an exhaust connection on the wall.
